Spatial Database

Why (do we need to talk about) (Spatial) Database¶

• Data Management and Organization: Spatial databases play a crucial role in managing, storing, and querying large volumes of geospatial data. A solid understanding of spatial databases helps geovisualization professionals effectively organize and access data, ensuring efficient workflows and accurate analysis.

• Data Retrieval and Query Performance: Geovisualization often involves working with complex spatial queries and data retrieval tasks. By discussing spatial databases, students can learn how to optimize these queries and improve performance, resulting in faster and more efficient data retrieval for visualization purposes.

• Data Quality and Consistency: Spatial databases provide tools and techniques for maintaining data quality, consistency, and integrity. This knowledge is vital for geovisualization professionals, as data quality directly impacts the accuracy and reliability of their visualizations.

• Data Analysis and Modeling: Spatial databases support various geospatial analysis and modeling techniques, such as spatial statistics, spatial interpolation, and geostatistics. A strong foundation in spatial databases allows geovisualization professionals to leverage these advanced methods and create more informative visualizations.

About Data Management¶

How do you manage your photos?¶

• Most cellphones take nice photos

  • Taking 3 photos a day will give you ~1,000 photos a year

  • Taking a 5-day vacation would give you 200 photos

• Ways to managing photos

  • Leave them on the phone?

  • Organize them into folders?

  • Upload them to some cloud services?

• Which method is the best?

Managing photos is very similar to the way of managing data, and vice versa.

Data Management¶

Definition (Oracle)¶

• Data management is the practice of collecting, keeping, and using data securely, efficiently, and cost-effectively.

• help people, organizations, and connected things

  • optimize the use of data within the bounds of policy and regulation

  • (use data to) enable data-driven decision-makings and take actions that maximize the benefit to the organisation

Database Operations - CRUD¶

• _C_reate: The Create operation is used to add new records (or rows) to a database table.

• _R_ead: The Read operation is used to retrieve or fetch existing records from a database table.

• _U_pdate: The Update operation is used to modify existing records in a database table.

• _D_elete: The Delete operation is used to remove existing records from a database table.

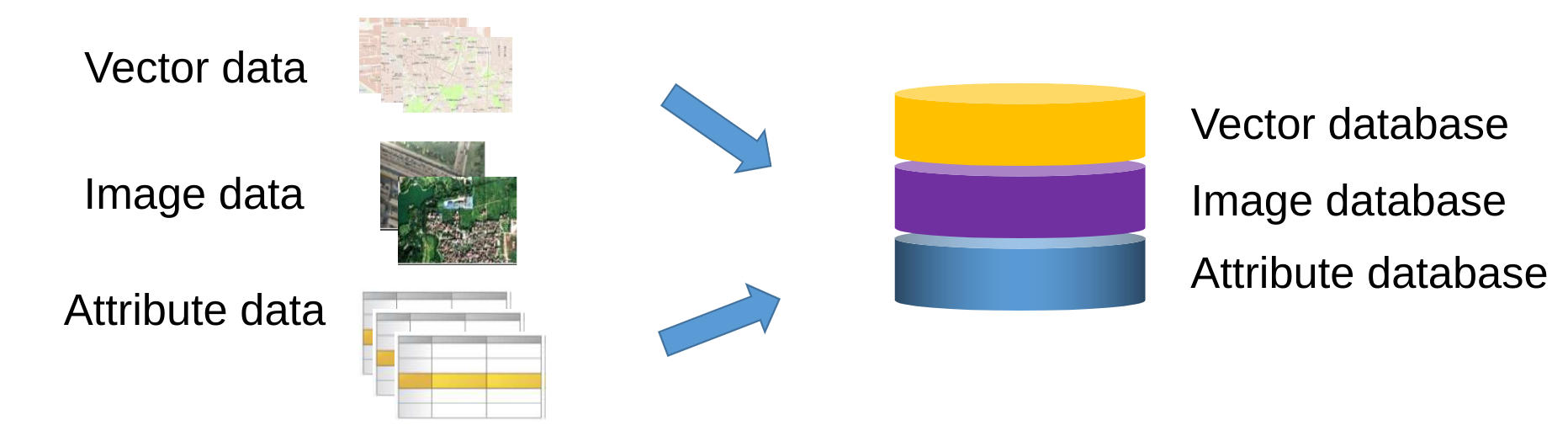

What is Database and Spatial Database¶

Database: an integrated set of data on a particular subject, which is often used to store, and organize data

Spatial (or Geographic) database: database containing geographic data of a particular subject for a particular area

Characteristics of (spatial) database¶

• Data is under centralized control

  • Can guarantee data sharing among different users and applications

  • Different from file management in which files are dispersed

• Data are independent

  • Database is independent of the application systems, and thus can be called by various application systems

• Data redundancy is small

  • Avoid repetitive data storage

  • Improve data usage efficiency

• Database has complex data model structure

  • The complex data model structure is used for data organization and data management

  • Vital difference from file management

• Database has the function of data protection

  • A password and permission for access must be set

class: left, middle

Database Management Systems (DBMS)¶

• A system to perform database operations on tables

  • CRUD (Create, Read, Update, Delete)

  • providing a systematic way to store, organize, retrieve, and manipulate data.

• It ensures data consistency, integrity, and security while enabling efficient access and data sharing among multiple users or applications.

• A DBMS supports various database models and provides features like backup, recovery, and performance optimization for effective data management.

Basic and key characteristics of DBMS:

• Persistence across failures --- maintain a consistent system after failures – software, hardware, network failures, etc.

• Concurrent access to data

• Scalability to search on very large datasets (which do not fit inside main memories of computers)

• Efficiency

DBMS clients¶

• an interface between users and the DBMS

• allow users to connect, access, and interact with the database

• a software package that enables people to build and manipulate a database

• Examples:

  • MySQL Workbench,

  • pgAdmin

  • SQL Developer

  • Microsoft Access (dBase file)

  • dBeaver

Relational Database¶

• It is a collection of tables, also called relations

• The tables are connected to each other by keys

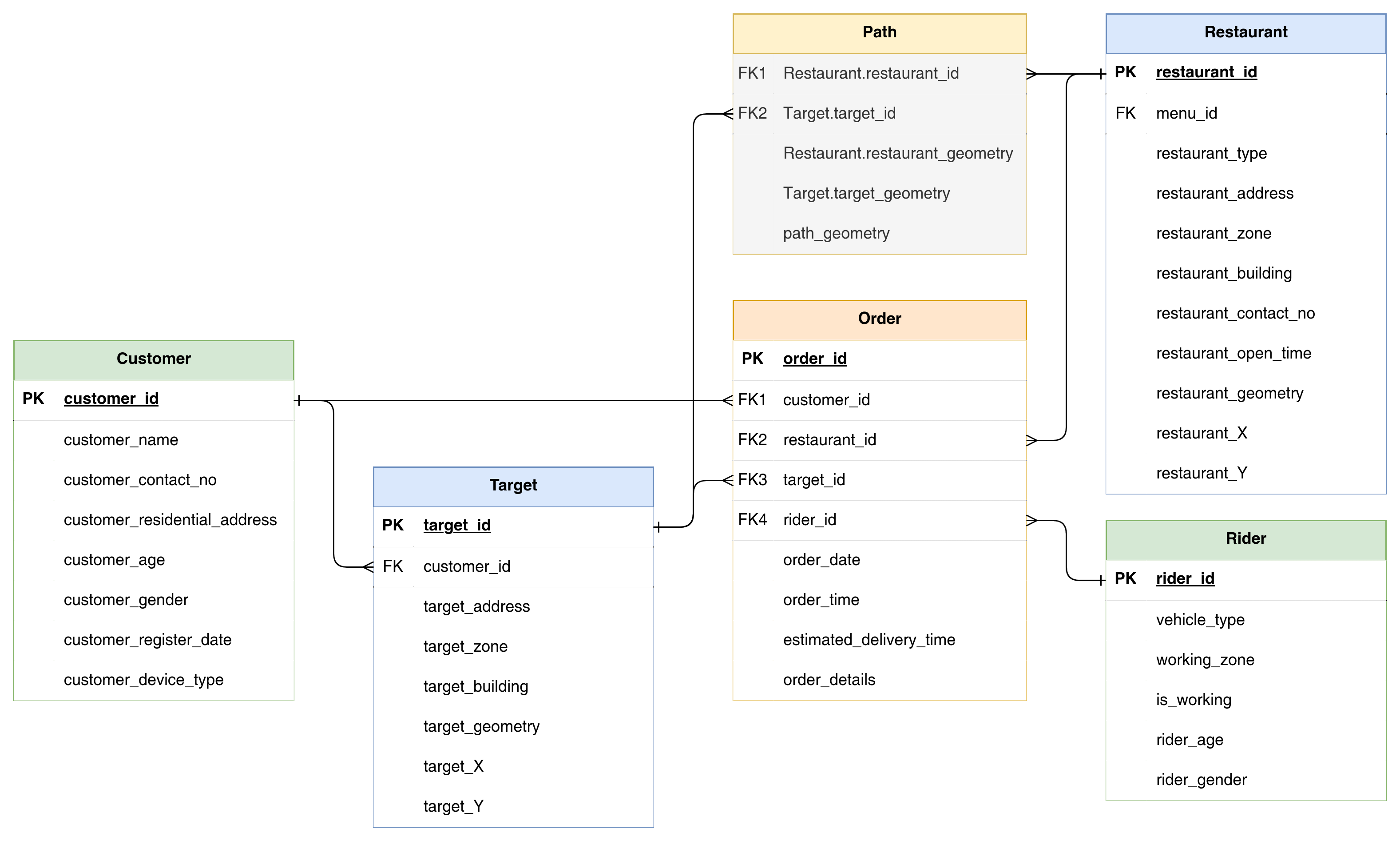

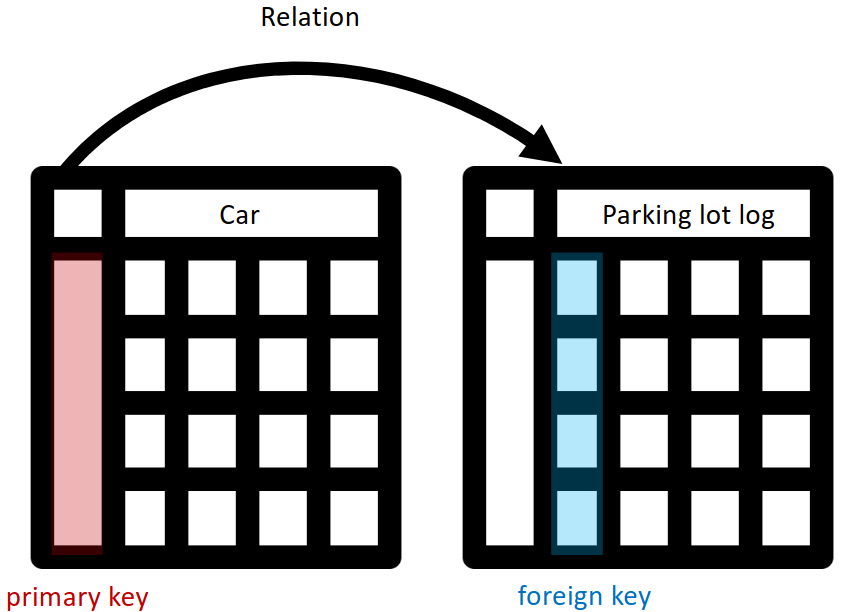

• A primary key: represents one or more attributes whose values can uniquely identify a record in a table

• A foreign key: is one or more attributes that refer to a primary key in another table

Primary key, Foreign key, Composite key¶

• Typically, one column, the primary key contains the unique ID (identifier) of the described things, e.g., student IDs, social security numbers

• This primary key column can exist in other tables to establish a relation, i.e., the foreign key

• A composite key is typically generated by combining the values of two or more columns in a table, e.g., student ID + course ID

Logical relation types¶

• One-to-one

• One-to-many

• Many-to-one

• Many-to-many

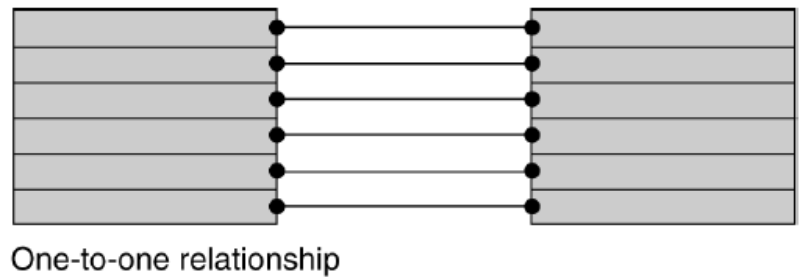

One-to-one ¶

Every entity on the left can connect to one and only one entity on the right.

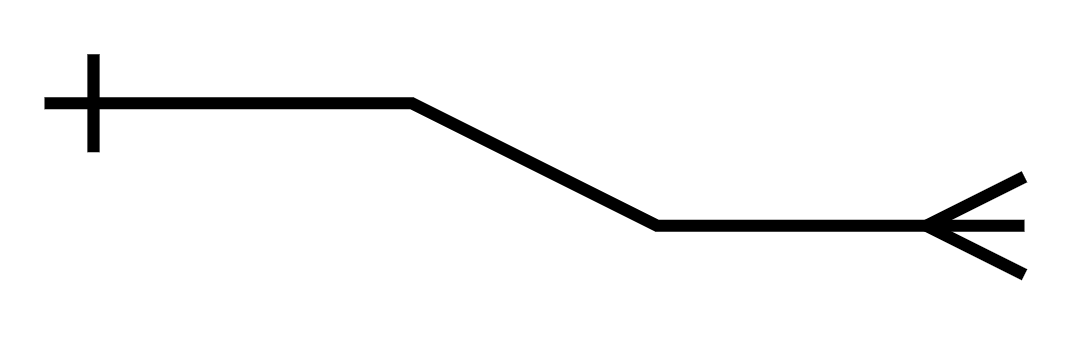

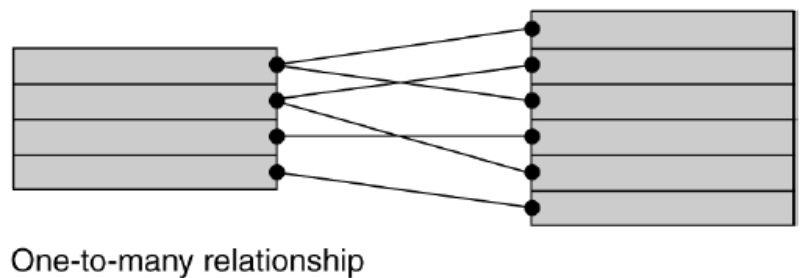

One-to-many ¶

Every entity on the left can connect to multiple entities on the right. Every entity on the right can connect to one and only one entity on the left.

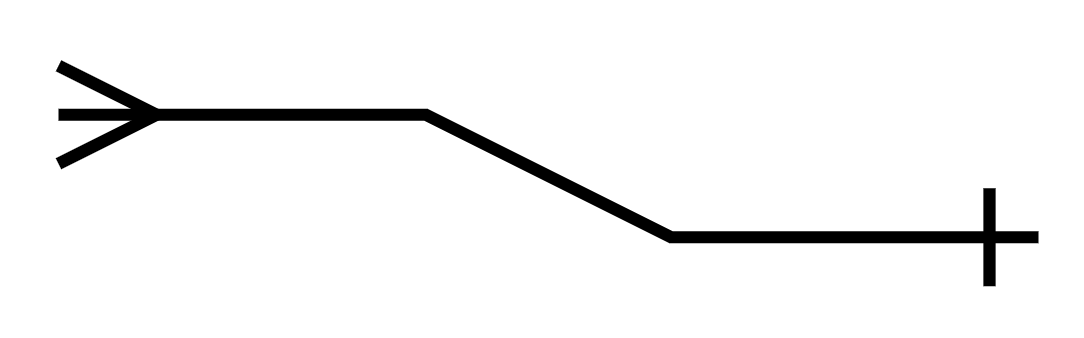

Many-to-one ¶

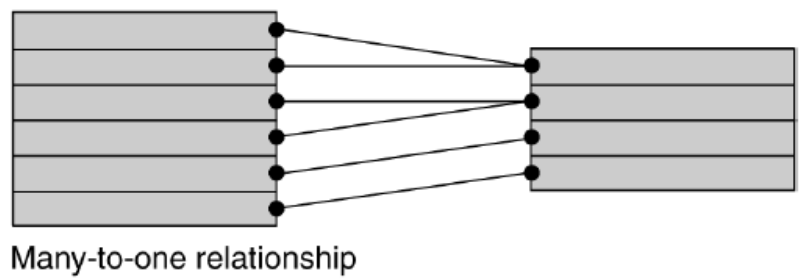

Every entity on the left can connect to one and only one entity on the right. Every entity on the right can connect to multiple entities on the left.

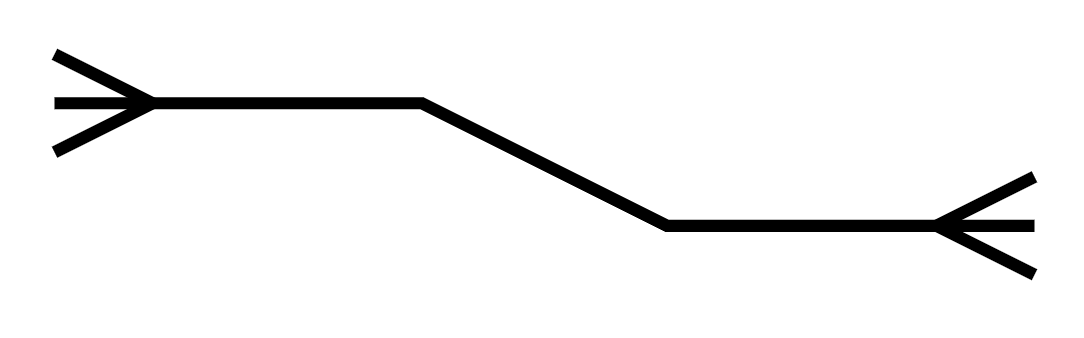

Many-to-many ¶

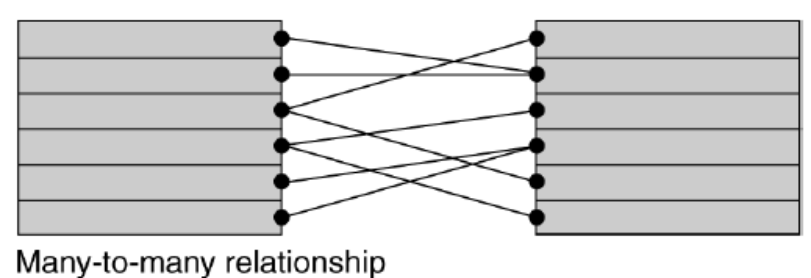

Every entity on the left can connect to multiple entities on the right. Every entity on the right can connect to multiple entities on the left.

Advantages of Relational Database¶

• Each table in the database can be prepared, maintained, and edited separately from other tables

  • This is important as more (GIS) data are being recorded and added

• The tables can remain separate until a query or an analysis requires that attribute data from different tables be linked (joined) together, which is favorable to both data management and data processing.

Normalization: Preparing a relational database¶

• Normalization is the process of decomposition, taking a table with all the attribute data, and breaking it down into small tables while maintaining the necessary linkages between them.

• Objectives of normalization:

  • To avoid redundant data

  • To ensure that attribute data in separate tables can be maintained and updated separately and can be linked whenever necessary

  • To facilitate a distributed database

Demonstration of database normalisation¶

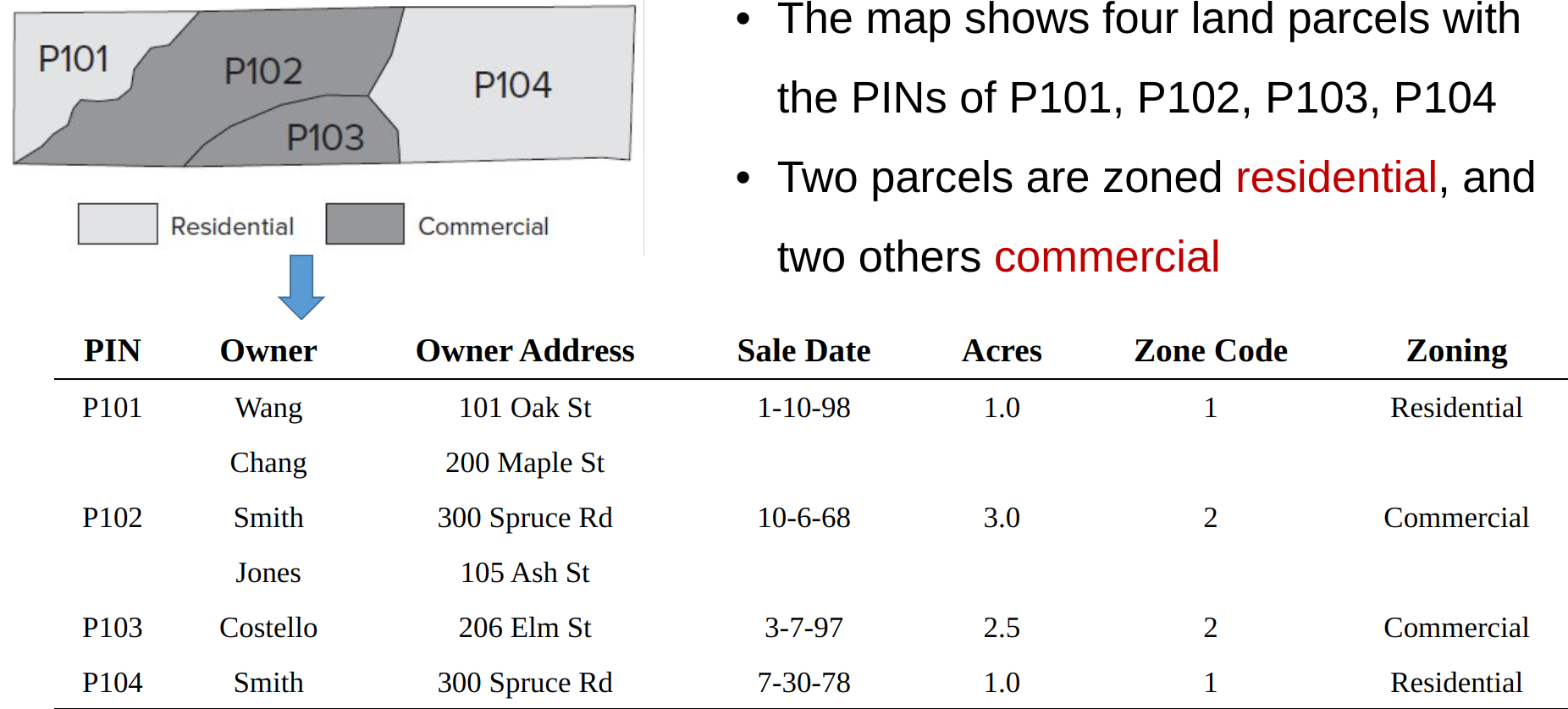

Step 0: Observation on the unnormalized table¶

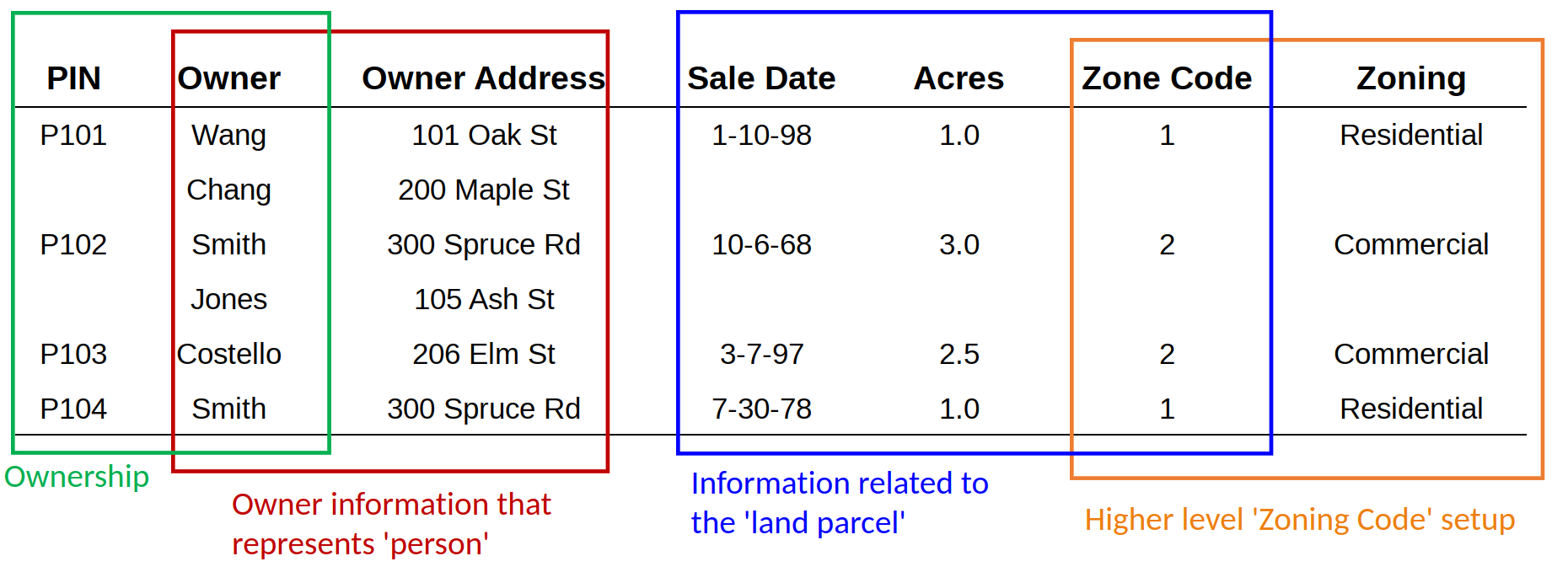

Database Normalization is mainly to separate information from different types of entities to separated tables.

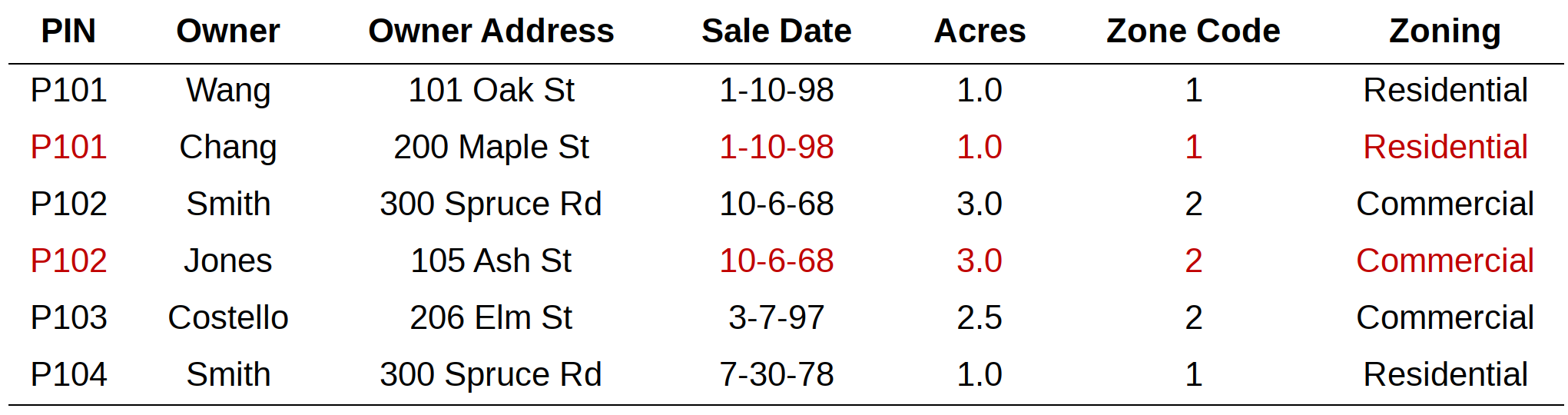

Step 1: Fill Missing Values¶

Step 1 fills the empty cells, and each cell has one value. But the problem of data redundancy has increased.

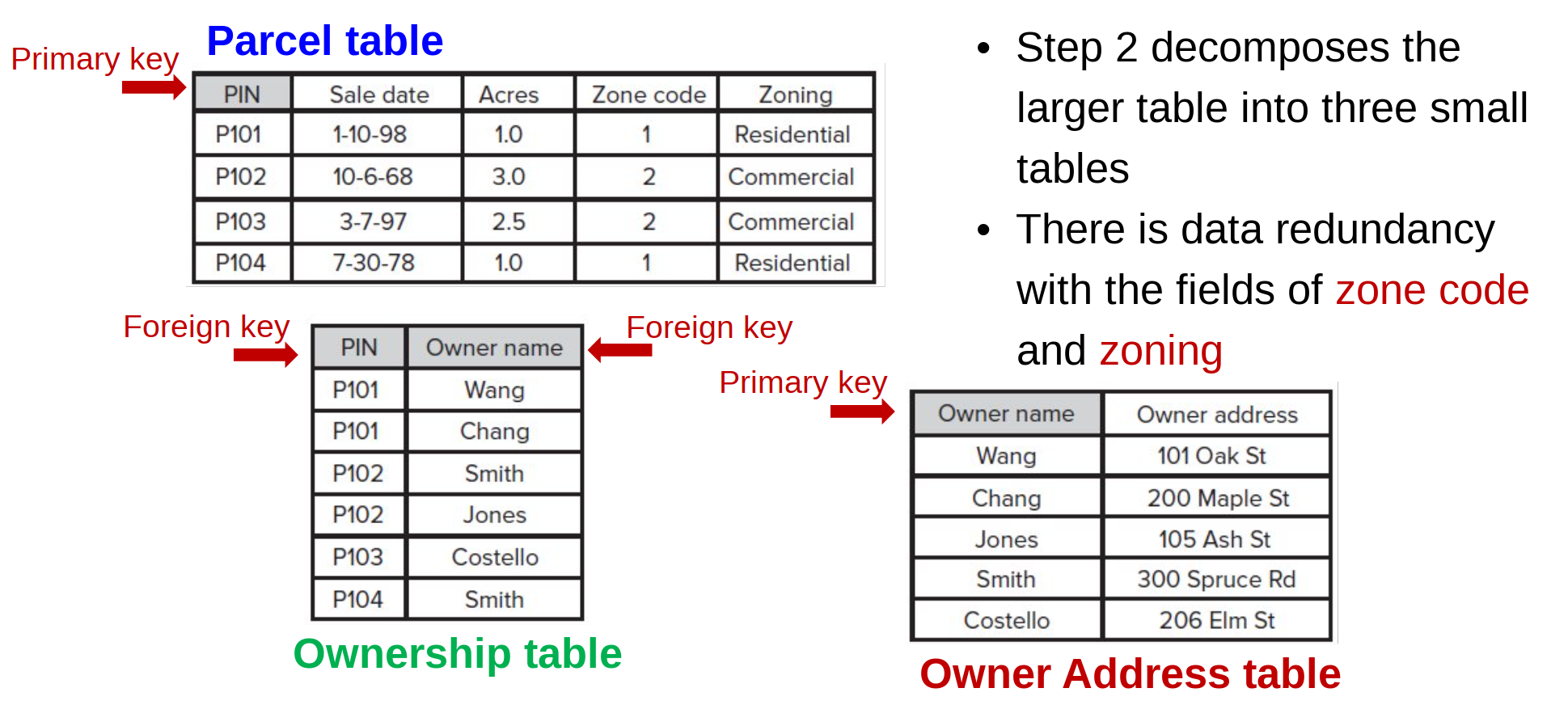

Step 2: Table Decomposition¶

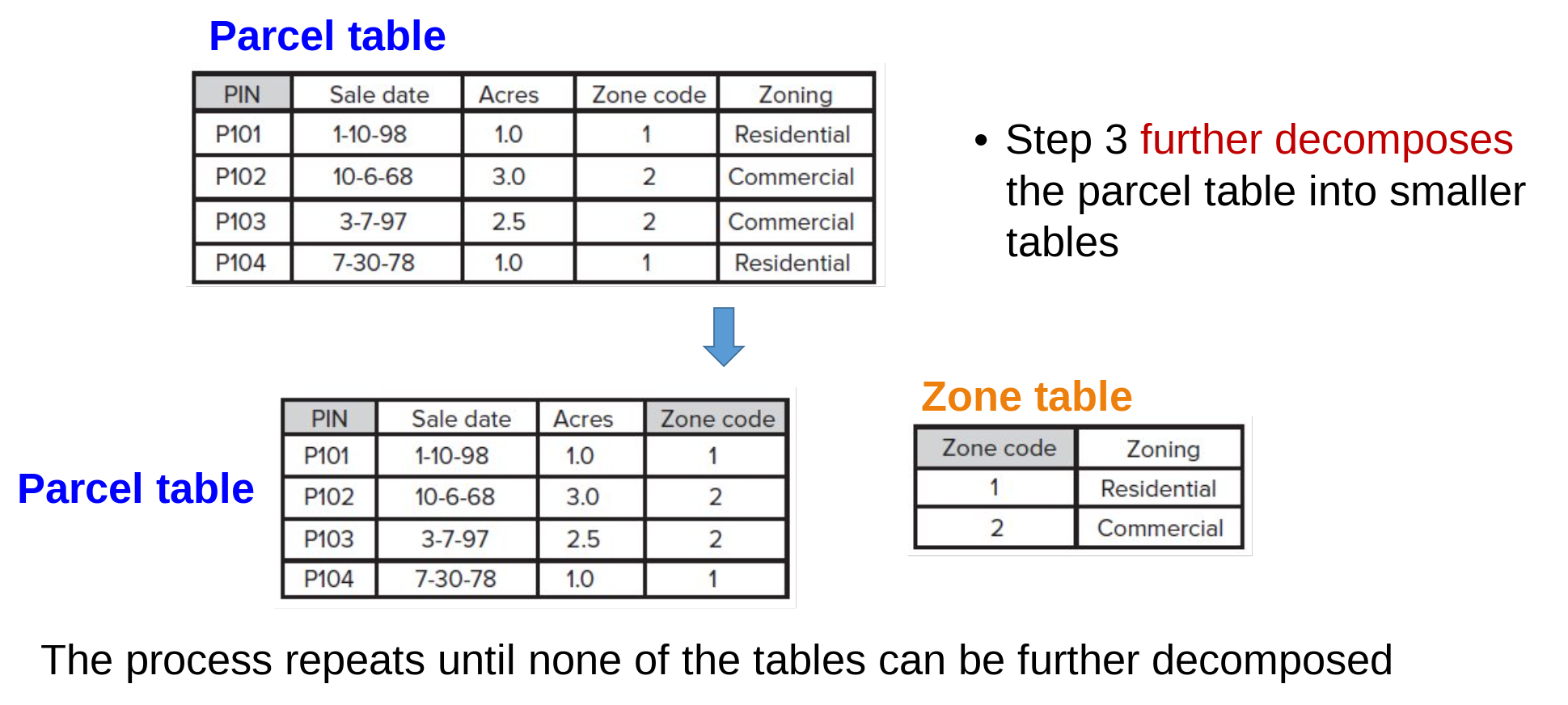

Step 3: Table Decomposition again¶

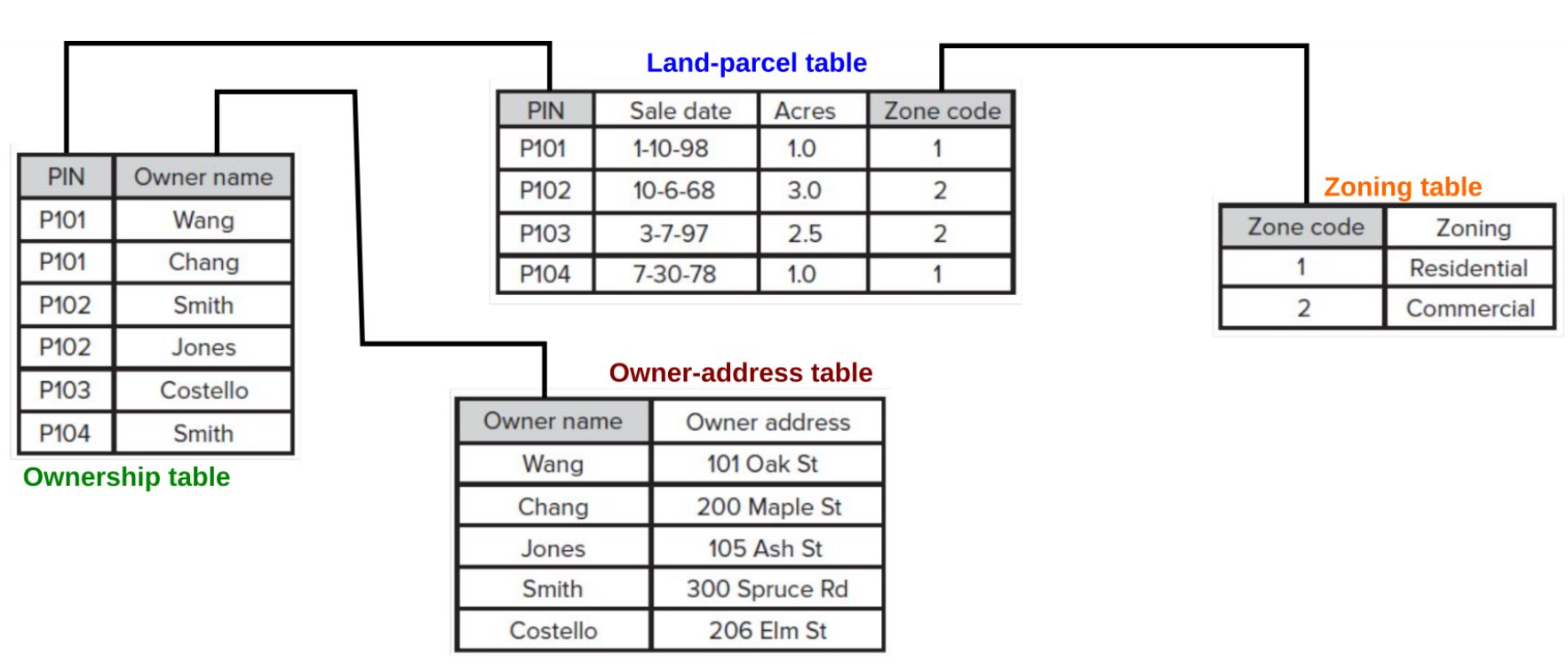

Done Normalisation¶

Table join and relate¶

Since now the tables are separated and represent a single object, how to ‘combine’ them again for other data operation and usage? Table join and relate are the two frequently used database operation in GIS.

Table join¶

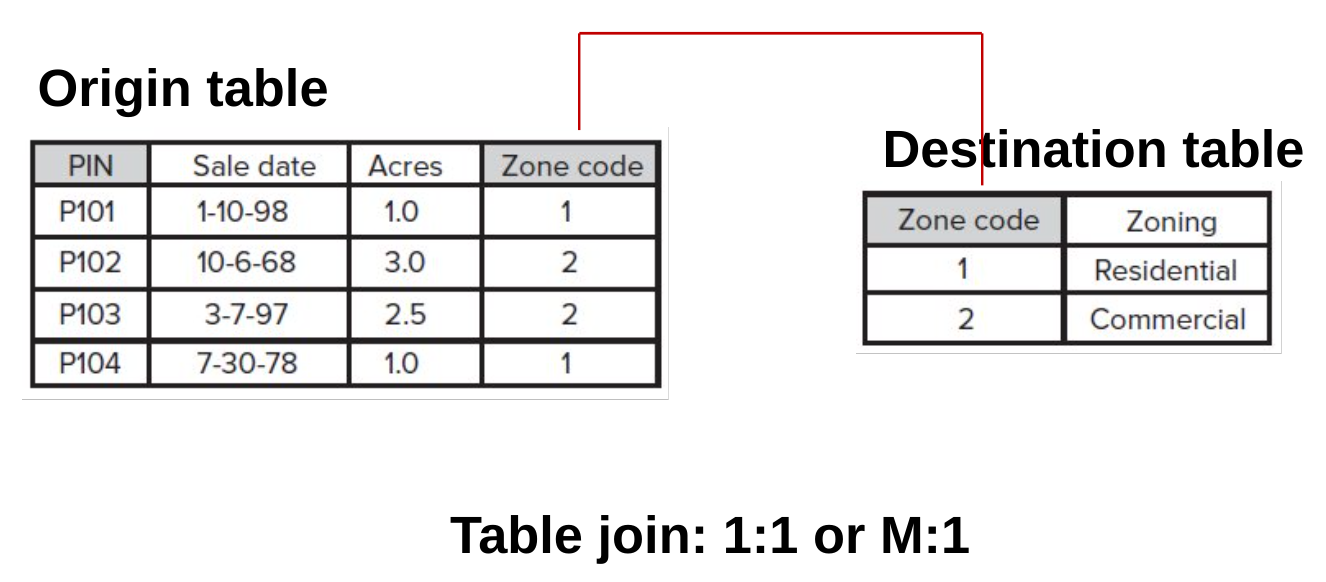

A join operation brings together two tables by using a common field or a primary key and a foreign key.

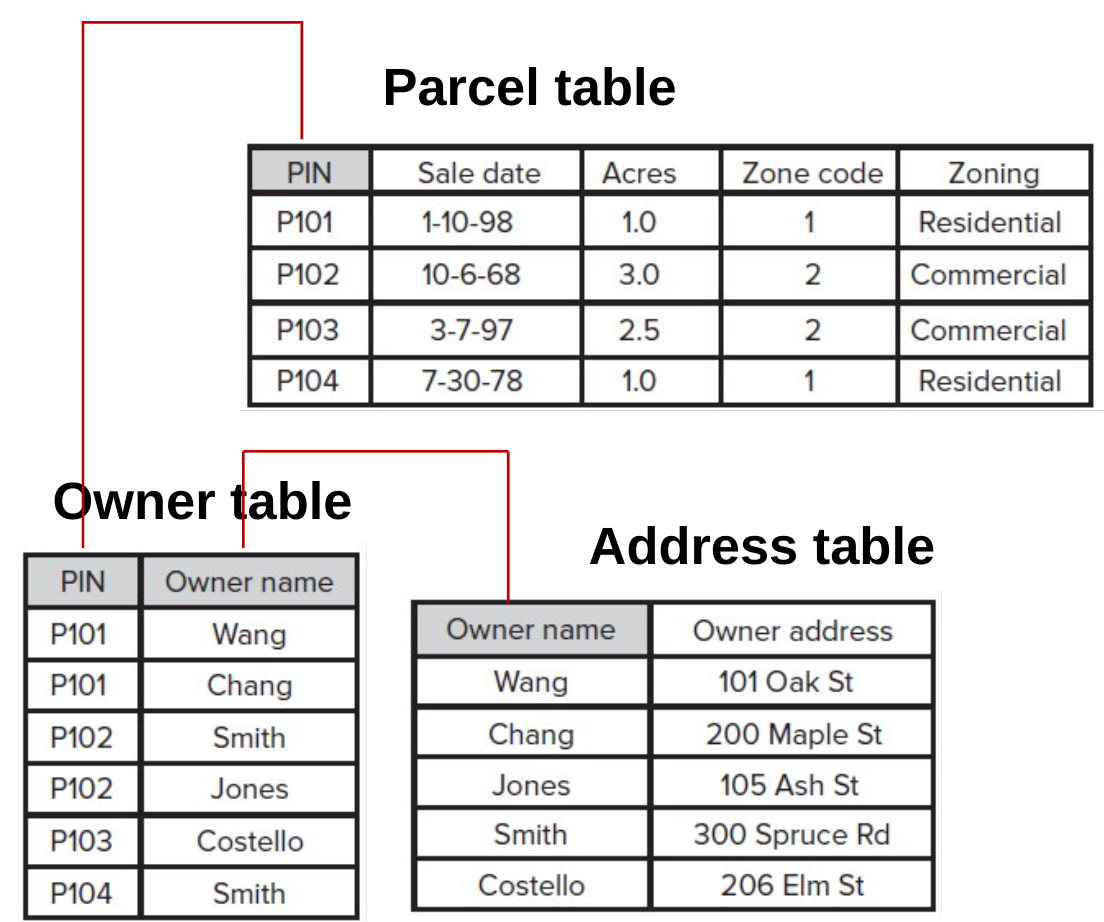

Table relate¶

• A relate operation temporarily connects two tables but keeps the tables physically separate

• Does not append the data from one table to another

• Three or more tables can be simultaneously connected

• Support all relationships

].column[

Comparison of Join and Relate¶

Join¶

• Combines data from two tables into a single table or layer.

• Most often used for one-to-one or many-to-one relationships.

• Requires a common field in both tables.

• Creates a static connection between tables (updates are not synchronized).

• Appended columns are editable, but changes won’t reflect in the original table.

Relate¶

• Establishes a temporary, dynamic connection between two tables or layers without physically combining them.

• Allows for one-to-one, one-to-many, and many-to-many relationships.

• Requires a common field in both tables.

• Provides real-time access to related data (updates are reflected when accessing related information).

• Allows for editing related data, but changes in the target table won’t be synchronized back to the original related table.

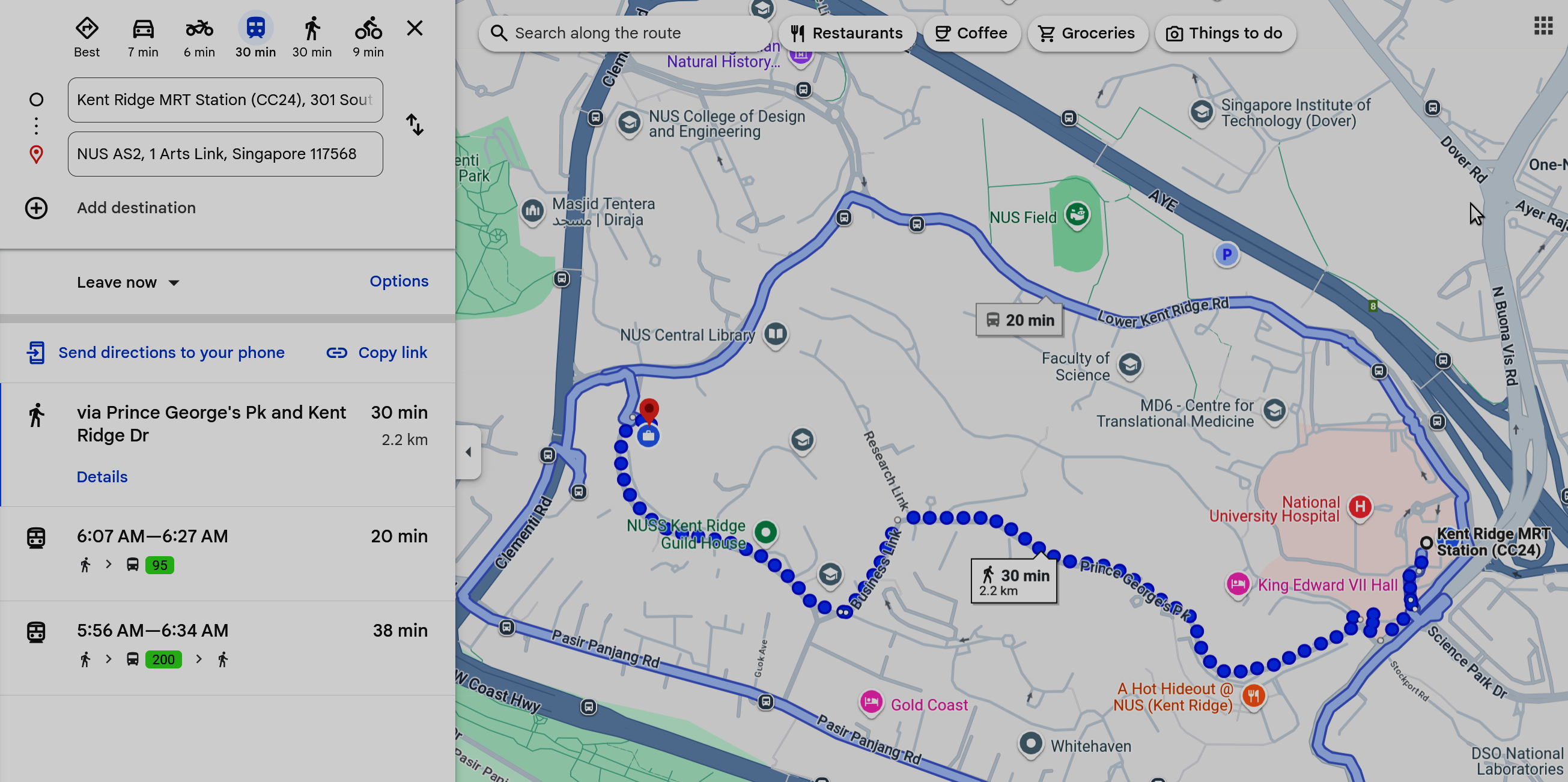

The Special of ‘Spatial’ in ‘Spatial Database’¶

• Location: Spatial databases store and manage data with a geographical component, allowing users to associate locations with other attributes for enhanced analysis and visualization.

• Proximity: Spatial databases enable proximity analysis, facilitating the identification of nearby features, calculation of distances, and exploration of spatial relationships between various data points.

• Direction: With spatial databases, direction-based queries and navigation-based queries, enabling route planning, shortest path calculations, and network analysis to optimize movement and travel within spatial data contexts.

Spatial is indeed special!

Spatial join¶

A spatial join uses a spatial relationship to join two sets of spatial features and their attribute data.

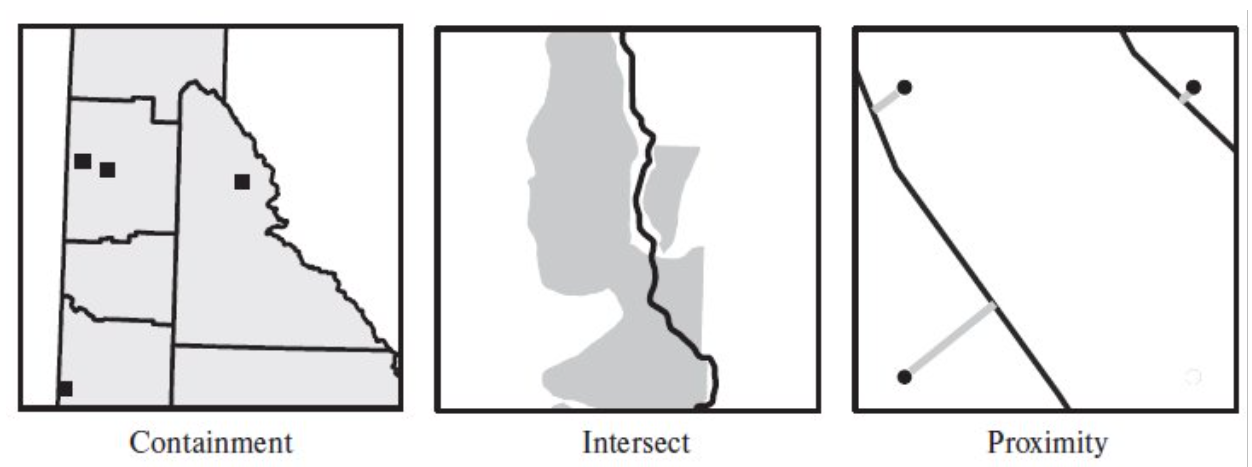

In Figure 19:

• (left) Join a school to a county in which the school is located

• (center) Join a highway to a forest area by which the highway is intersected

• (right) Join a villages to a fault line which the village is closest to

Example of spatial database¶

• PostgreSQL + PostGIS

• Mysql + Spatial Extension

• SQLite + SpatiaLite

• DuckDB + Spatial Extension

• MongoDB

• CrateDB

Spatial Indexing¶

Operationaly, what is the addition of SPATIAL to the database?

• Spatial indexing is a crucial and arguably the main component of a spatial database because it’s essential for efficiently querying large datasets of geographic or geometric data.

• KD-Tree, QuadTree

• R-Tree

Example of spatial query (PostGIS)¶

Create table¶

CREATE TABLE public.cities (
    id serial PRIMARY KEY,
    name VARCHAR(255),
    population INT,
    geom GEOMETRY(Point, 4326) -- Point geometry, SRID 4326 (WGS 84 geographic coordinate system)
);

Insert data rows (point)¶

INSERT INTO public.cities (name, population, geom) VALUES
('London', 8982000, ST_SetSRID(ST_MakePoint(-0.1278, 51.5074), 4326)),
('Paris', 2141000, ST_SetSRID(ST_MakePoint(2.3522, 48.8566), 4326)),
('New York', 8419000, ST_SetSRID(ST_MakePoint(-74.0060, 40.7128), 4326));

Example of spatial query (PostGIS)¶

Finding cities within a search distance from a point¶

    SELECT name
    FROM public.cities
    WHERE ST_DWithin(
        geom::geography,
        ST_SetSRID(ST_MakePoint(-0.1278, 51.5074), 4326)::geography,
        100000 -- distance in meters
    );

Spatial Joins¶

-- Assuming another table 'countries' with a 'geom' column (Polygon)
SELECT c.name AS city_name, co.name AS country_name
FROM public.cities AS c, public.countries AS co
WHERE ST_Contains(co.geom, c.geom);

Do calculation (area)¶

    SELECT ST_Area(ST_GeomFromText('POLYGON((0 0, 0 1, 1 1, 1 0, 0 0))', 4326));
